Patented Twin Wall

At Dae Young Special, we take pride in our patented twin wall technology, engineered to outperform traditional concrete pumping pipes. Our centrifugal casting process and high-chrome alloy inner liner create a stronger, more durable, and impact-resistant pipe that withstands extreme pressure and heat.

Why Choose Our Patented Twin Wall Pipes?

  • ✅ Superior Durability – Outlasts standard carbon steel pipes, with customers seeing 100,000+ cubic yards of use before replacement.
  • ✅ Enhanced Performance – Withstands higher working and burst pressure without compromising material integrity.
  • ✅ No Water Welding Needed – A seamless design ensures longer lifespan and reliability.
  • ✅ Patented Manufacturing Process – Our fungal casting technology delivers unmatched precision and consistency.
With Dae Young Special’s innovative twin wall pipes, you get the best quality, longest lifespan, and highest performance in the concrete pumping industry.

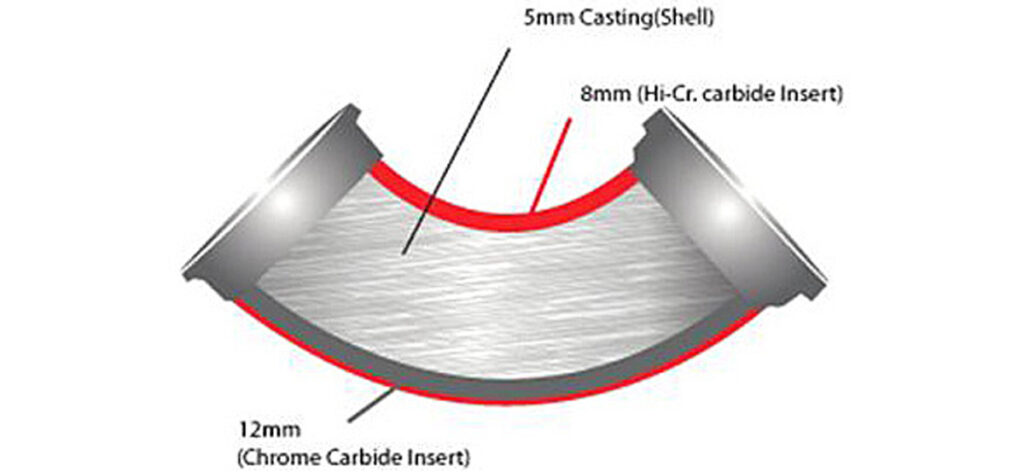

Twin Wall Elbow 6"

(HRC58, HRC67) 90 degrees

6″ DN 150 5.Omm (shell) + 8mm + 12mm (inner) x 24.5kg [54.2 lbs] 5.0mm

Twin Wall Elbow 4.8"

(HRC58, HRC67) 90 degrees

4.8″ DN 125 x 275R 4.3mm (shell) + 7.5mm + 9.5mm(inner) x 17.5kg [38.5 lbs] 5.0mm

Twin Wall Elbow 4.4"

(HRC58, HRC67) 90 degrees

4.4″ DN 125 x 3000mm 7.7mm (5mm + 2.7mm x 7.7kg [169 lbs]

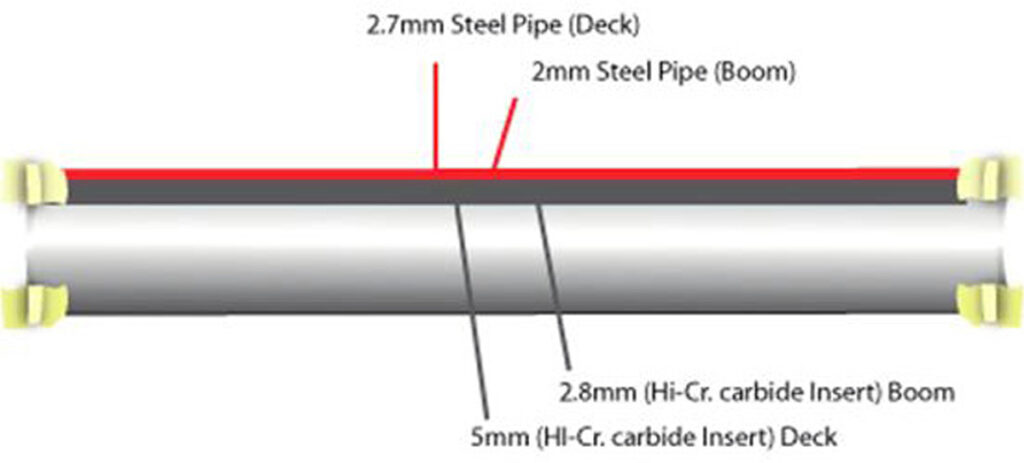

Twin Wall Deck Pipe

(HRC58, HRC67)
4.8″x DN 125 x 3000mm (7.7mm (5mm + 2.7mm) x 77kg (169lbs))

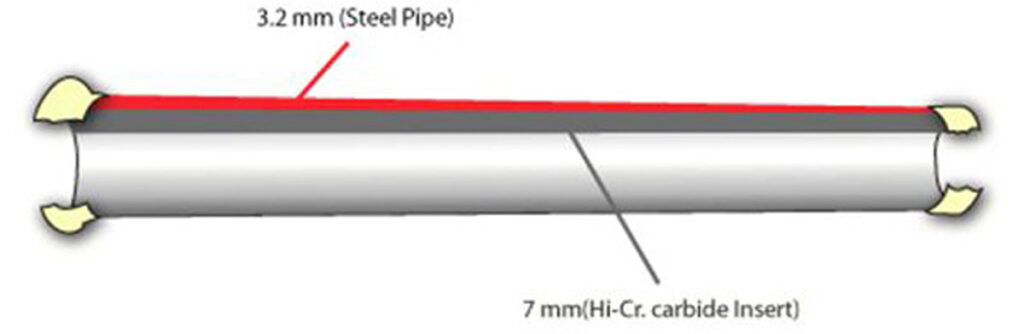

Twin Wall Reducer Pipe

(HRC58, HRC67)
(DN 150 – DN 125) 1200mm (ZX-SK)(SK-SK)
(3.2mm (shell) + 7mm (inner) x 36kg (79.3 lbs))

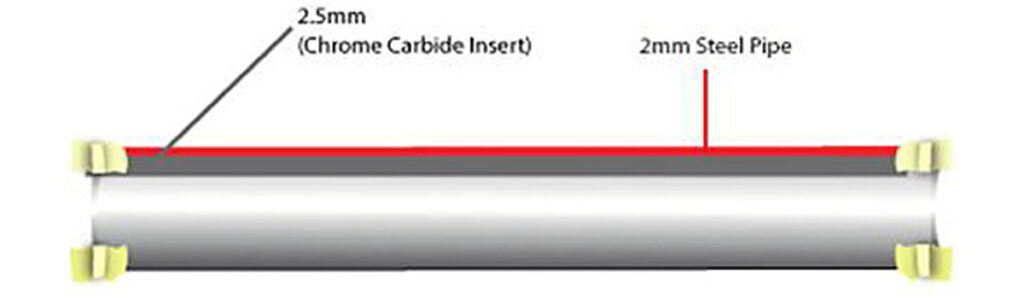

Twin Wall Boom Pipe

(HRC58, HRC67)
4.4″ x DN112 x 4,500mm (4.5mm (2.5mm + 2mm) x 60kg (132.2 lbs))
4.4″ x DN112 x 3,000mm (4.5mm (2.5mm + 2mm) x 42kg (92.5 lbs))

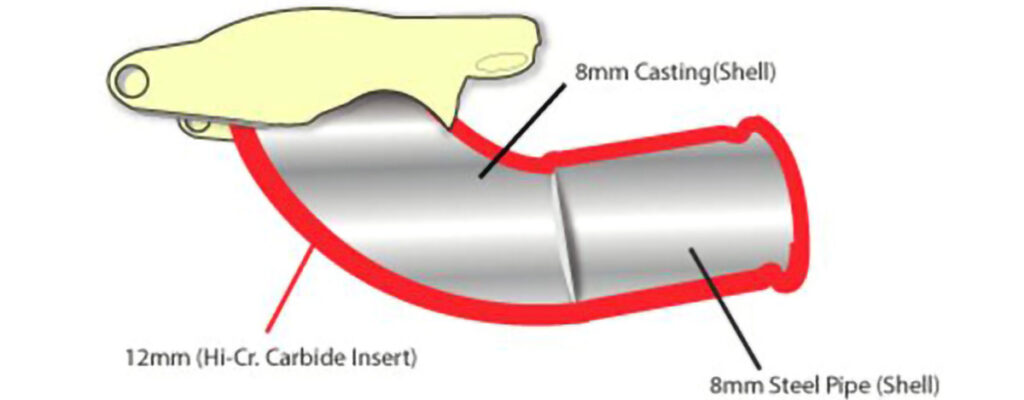

Twin Wall Flap Elbow

(HRC58, HRC67)
(8mm (shell) + 12mm (inner) x 80kg (176 lbs))

Ready for Durable & Reliable Twin Wall Pipes?

Upgrade your concrete pumping system with high-performance twin pipes and elbows that outlast the competition. Request a Quote
